Mini Fast Wire Cable Connectors Universal Compact Conductor Spring Splicing Wiring Connector Push-in Terminal Block SPL-2/3 LED

Short Description:

Brand Name:WNRE

Place of Rfigin:Zhejiang,China

Pins:2p,3p,4p,5p

Product name:Terminal Block Wire Connector

Connector type:Adaptor


Product Detail

Product Tags

Introduction

1
casc

Product details

Product details

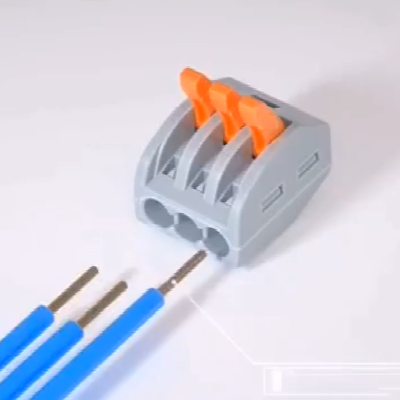

Name:Quick splice wire connector
Electrical data
>Ratings per IEC/EN
Ratings per EN 60664
Nominal voltage (II/2) 400 V
Rated surge voltage (II/2) 4 kV
Rated current 32 A
Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2
>Connection data
Actuation type Lever
Connectable conductor materials Copper
Solid conductor 0.08 … 2.5 mm² / 28 … 12 AWG
Stranded conductor 0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor 0.08 … 4 mm² / 28 … 12 AWG
Strip length 9 … 10 mm / 0.35 … 0.39 inch
Total number of connection points 3
Total number of potentials 1
Wiring type Side-entry wiring
> Physical data
Width 17 mm / 0.669 inch
Height 14.5 mm / 0.571 inch
Depth 20.5 mm / 0.807 inch
>Material data
Color gray
Flammability class per UL94 V0
Fire load 0.088 MJ
Color of actuator orange
Weight 4.3 g
>Environmental requirements
Surrounding air temperature (operation) 40 °C
Continuous operating temperature 85 °C
>Commercial data
Packaging type 50 pcs or 100 pcs/BOX
100 boxes in carton

Features:
100% brand new and high quality.
Widely used-it is widely used in building wiring where space is at a premium for all connections requiring.
Safe-selecting the best flame retardant insulating material, which is long life, no corrosion, anti-aging, pressure 4KV and against electrical shock.
Easy to use-instead of the traditional wire docking method. It breaks the disadvantage of the traditional wiring method which is troublesome in wiring, easy to leak, and easy to corrode.
Reusable-this wire connector is suitable for soft and hard wire. Every junction independent shrapnel, different wire managed separately, different diameter can be connect security, there are test hole in every cage surface, electric test no need to remove tape ,intuitive, more easy, What's more, it is a reusable connector.

Payment: T/T Paypal L/C at sight
Delivery Time: QTY Less than 50K, 5-15days
Samples policy: Free Samples, but client need to pay express cost or leave us DHL account.
Samples lead time: 1-3days
