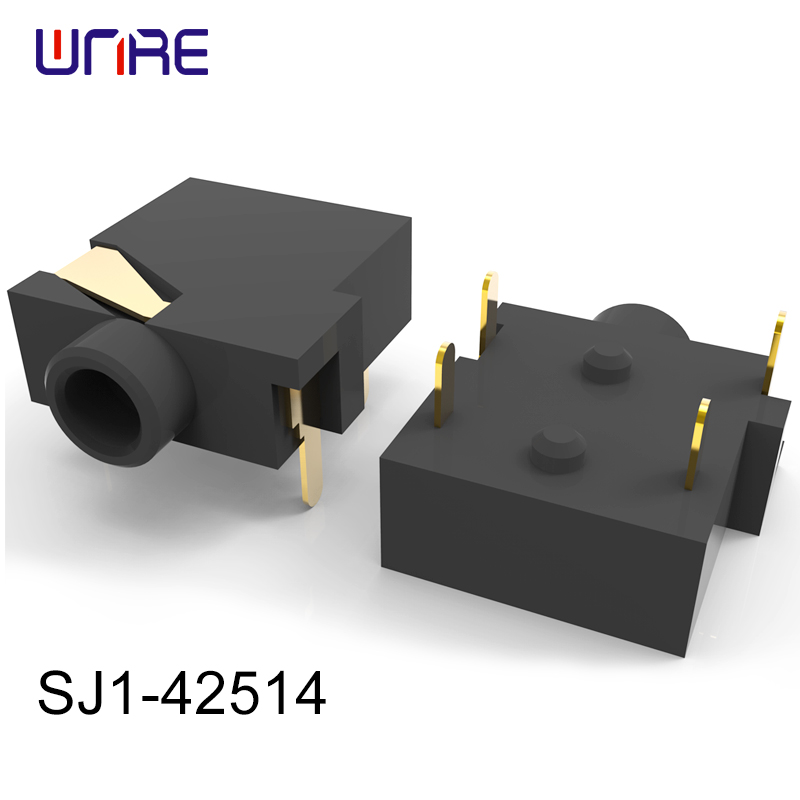

SJ1-42514 AUDIO JACK 12V 1A gold flash

Model no.SJ1-42514

DESCRIPTION:AUDIO JACK

rated input voltage	12 V
rated input current	1A
contact resistance	between terminal and mating plug50mΩ
contact resistance	between terminal in a closed circuit30mΩ
insulation resistance	at 500V DC ≥100MΩ
voltage withstand at 50-60Hz for 1 minute	500V ac
insertion/withdrawal force	3-30N
operating temperature	-25-85℃
life at a rate of 10-20 cycles/minute	5000
flammability rating	UL94V-0
RoHS	Yes

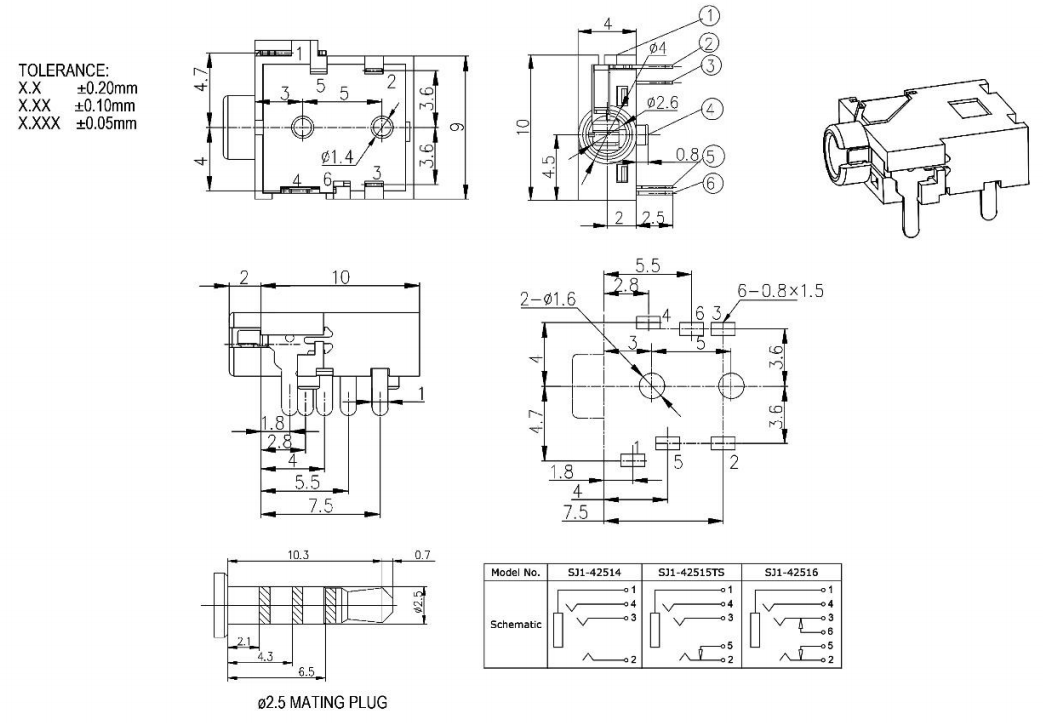

Product Detail

SOLDERABILITY

Parameter	Conditions/Description	min	typ	max	units
wave soldering	dipped in solder pot for 5±0.5 seconds at	255	260	265	℃
