WP8 8P Red Black Wire Clip WP Push Terminal Speaker Terminal Connector

Short Description:

Model Number:WP8-1B

Product Type: Screw Terminal, Speaker Terminal

Rated load: AC 50V 3A

Contact Resistance: ≤0.03Ω

Insulation Resistance: ≥100MΩ DC 500V

Operating Temperature: -40°C~+55°C

Withstand Voltage: AC500V (50HZ)/min

Actuating Force: 1KGF

Life: ≥10,000 Cycles


Product Detail

Product Tags

Model number WP8-1B Product type
Screw Terminal, Speaker Terminal
Actuating Force 1KGF Withstand Voltage
AC500V (50HZ)/min
Contact Resistance ≤0.03Ω Insulation Resistance
100MΩ DC 500V
Rated load
AC 50V 3A Operating Temperature -40°C~+55°C
Operating Temperature -25°C~+70°C Life 10,000 Cycles

WP is used in TV sets, DVD players, loudspeakers and other wireless equipment. It can be directly inserted into the circuit board, and the contact performance is reliable.

WP1

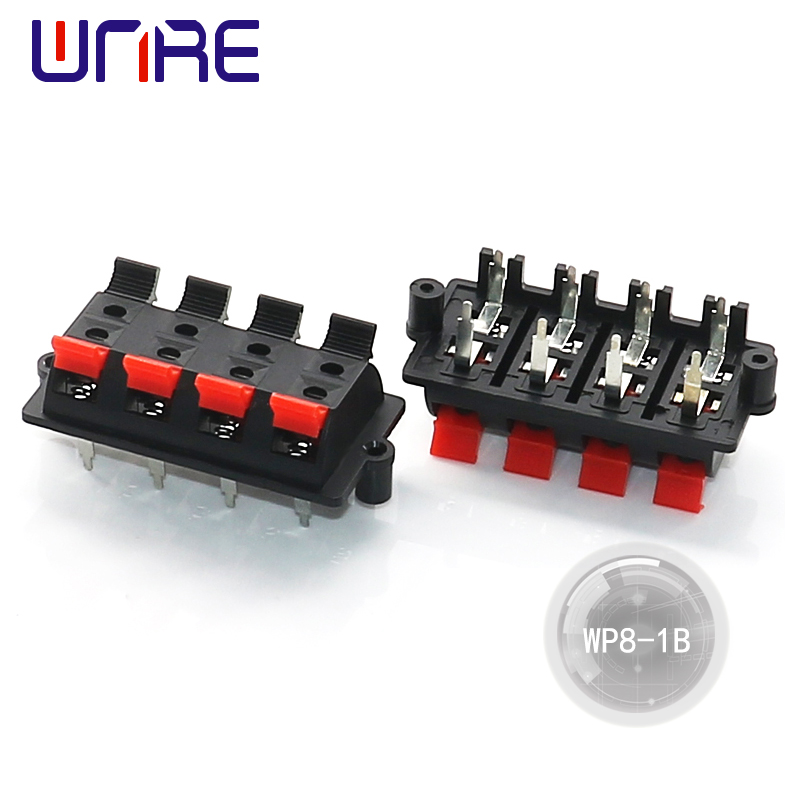

WP8-1B

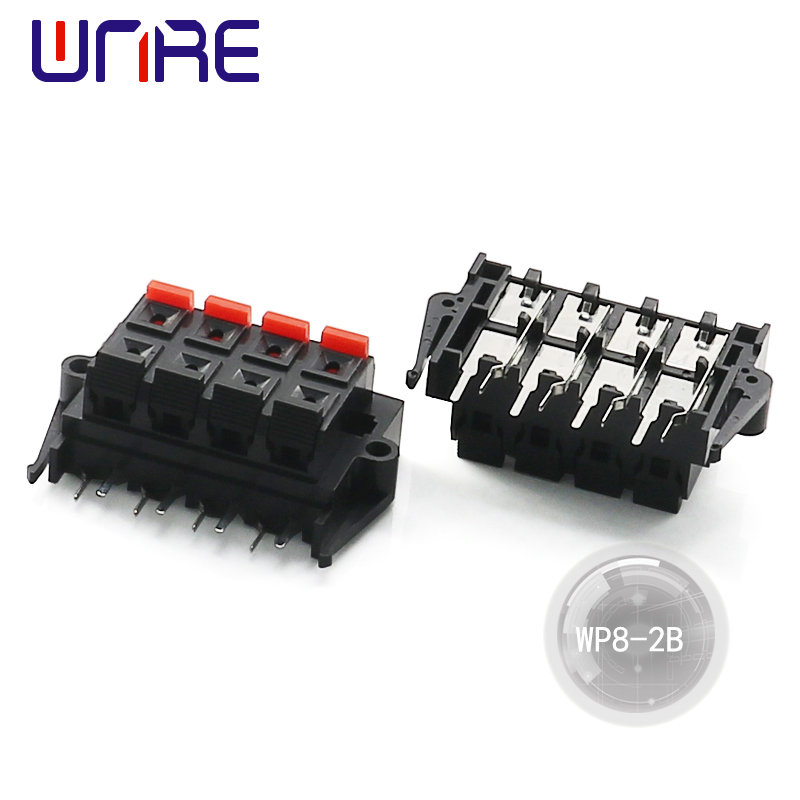

WP8-2B

Packing & Delivery

Packing

1: Neutral packing: Bulking packing in Poly bag +inner box +carton
2: Upon customers' request

Payment & Delivery

Payment: TT,LC, Western Union, Money Gram, PayPal etc., T/T 30% as deposit and the balance before delivery. We'll show you the photos of the products and packages.

Delivery time: 7-10 working days after the payment confirmed.
Shipment: Ship worldwide by sea, air, express delivery, like DHL, UPS, TNT and FEDEX etc.
